Assen's multilift capacity is 20 cubic meters

Assen's multilift capacity is 20 cubic meters

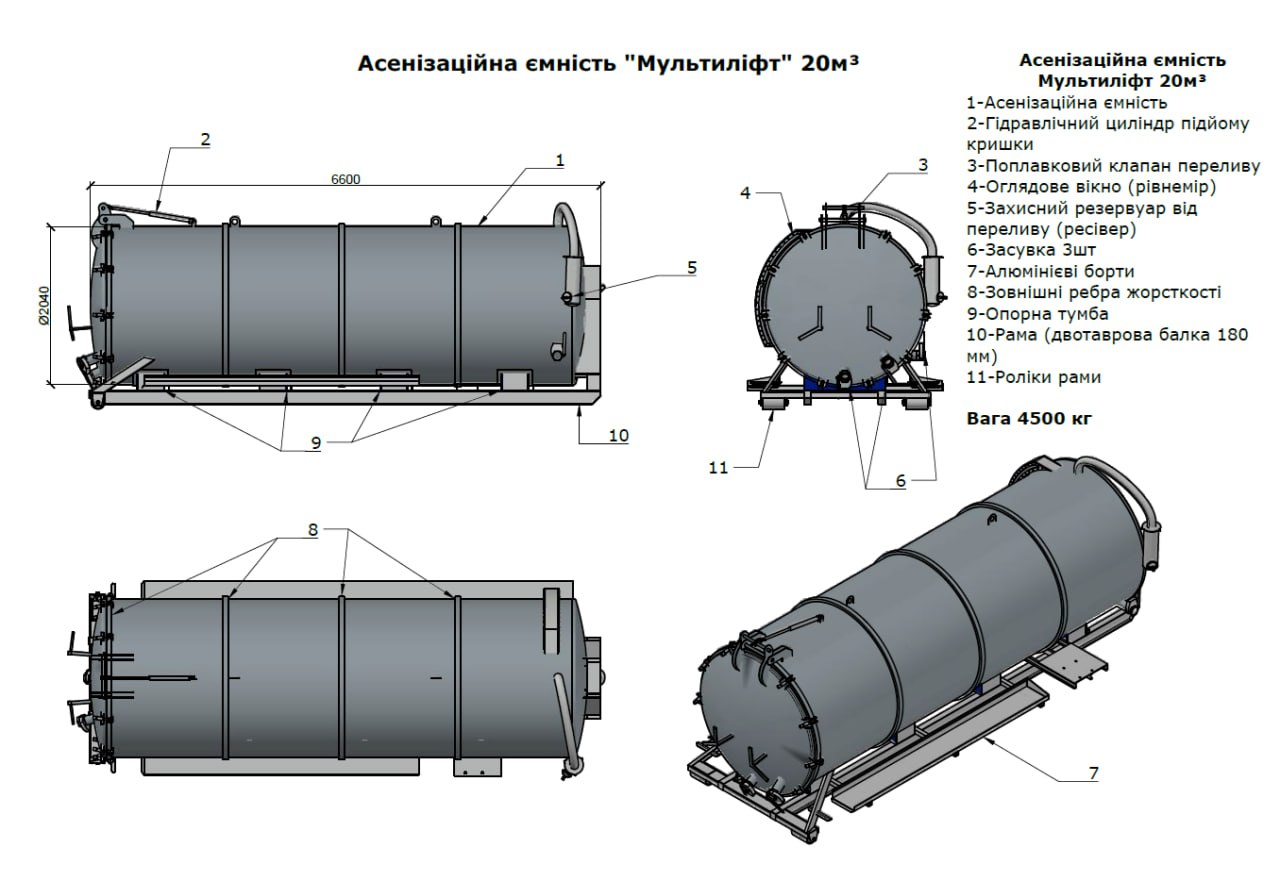

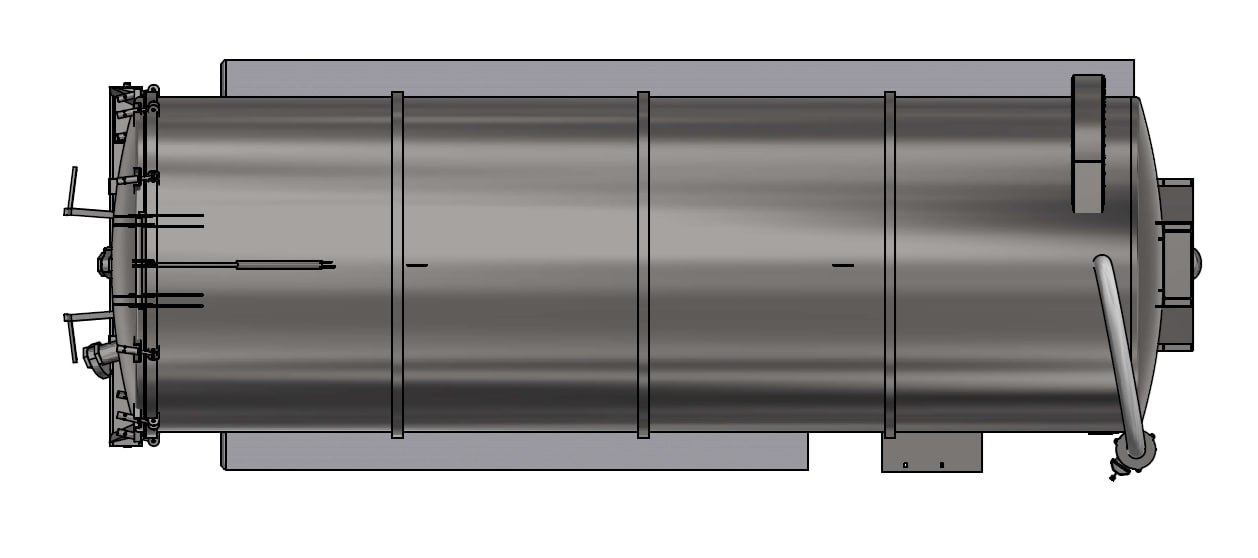

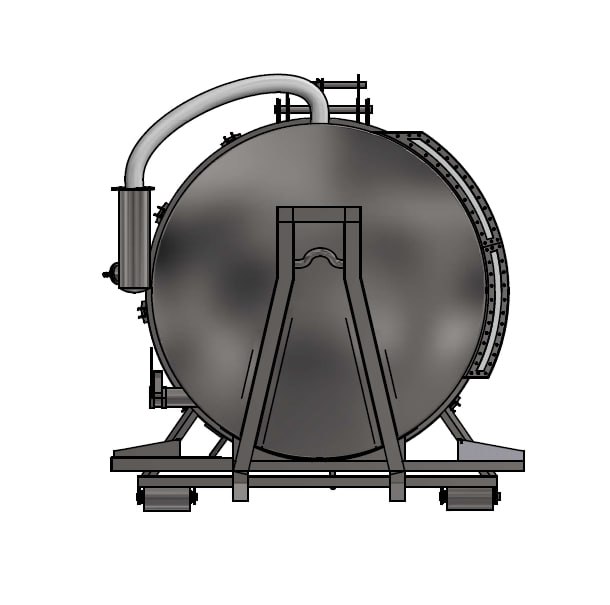

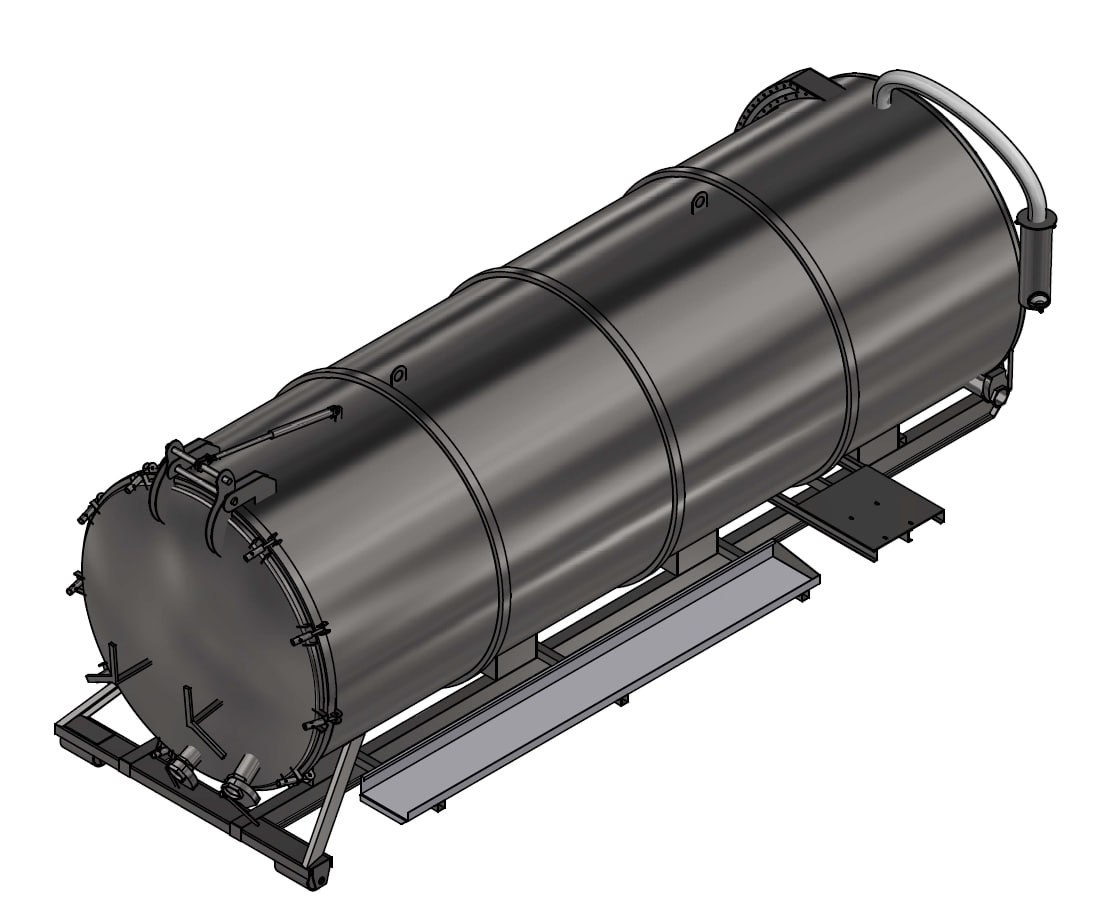

The tank is made of 6-8 mm thick St3 sheet. The bottom is made in-house from sheet steel 8 mm thick with a diameter of 2040 and 2100 mm. The back cover on the hinge on the hydraulic cylinder opens 60° upwards, which makes it possible to clean the container in the middle. The sewage tank has 3 (4'') inlets on the valve, for pumping in and pumping out suspensions. On the rear hatch there is a window for indicating the level of filling the tank. The tank has 4 additional breakwaters inside the barrel to dampen dynamic shocks. Capacity from the outside additionally reinforced with stiffeners to prevent deformation of the container during loading. The sewage tank is equipped with a protective overflow float valve an overflow tank with an inspection window (receiver). It is also equipped with positive and negative pressure valves to prevent deformation of the tank. Also, the sewage tank is equipped with a radial viewing window (level) for observation tank filling. The package also includes Aluminum sidewalls for transporting hoses to other equipment. The sewage tank is attached to a 180 mm I-beam. Rollers (rollers) are provided at the back of the tank in its lower part, which simplify the process of movement and loading.
